Eleaf iStick Tria Kit User Manual

If you have lost your user manual for Eleaf iStick Tria Kit, don't worry! Here is the forever one!

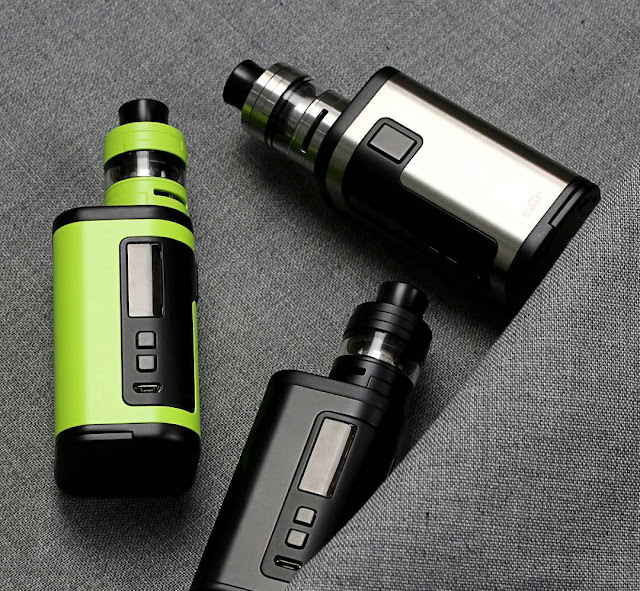

Notice for Use
Thank you for choosing Eleaf iStick Tria With Ello S Starter Kit! Please read this manual carefully before use so as to use correctly. If you require additional information or have questions about the product or its use, please consult your local agents, or visit our website at www.eleafworld.com.



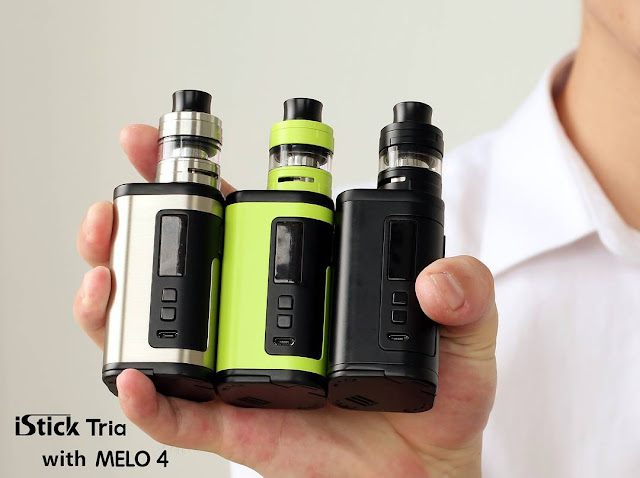

How to Use?
Power on/off: push forward to open the battery cover, put three high-rate 18650 batteries correctly into the battery housings, and finally close the battery cover. The device can be powered on or off by pressing the fire button 5 times. The battery levels of battery 1, battery 2 and battery 3 are respectively displayed on the screen.
Note:
1. Please be careful not to use batteries with torn casing as it is a safety hazard.
2. Please make sure you are using high-rate 18650 batteries whose continuous discharge current should be above 25A.
3. Before using, please set the wattage within a proper range that the atomizer you installed can work with.

Vaping: when the device is powered on, long press the fire button to take a puff.
Stealth on/off: press the fire button and “-” button simultaneously when the device is powered on to switch between Stealth On and Stealth Off mode. In Stealth On mode, you can vape with the OLED screen off and you can press the fire button once to see current setting.
Adjustment button lock/unlock: keep pressing “+” and “-” buttons simultaneously for two seconds when the device is powered on, then the adjustment buttons will be locked and the screen will display “Key Lock”. In the same way, the adjustment button can be unlocked and the screen will display “Key Unlock”. Through this operation, you can protect the buttons from unintentional presses and prolong their lifespan.
Switch display mode: keep pressing “+” and “-” buttons simultaneously for two seconds when the device is powered off, the screen display will rotate 180 degrees. You can view the screen from two different angles through this operation.
Switch display interfaces: in power-on state, choose VW mode; keep holding “+” and fire buttons till the current interface flashes; when it’s flashing, press “+”or “-” button to switch among different parameters; finally press fire button once to confirm the interface you chose
Note: the interface can only be changed and selected under VW mode in power-on state. And when one interface is selected under VW mode, the interfaces of TC (Ni, Ti, SS, M1, M2, M3) modes will change accordingly and automatically.

Puff/second reset function: in power-on state, choose VW mode; keep holding “+” and fire buttons till the puff or second interface flashes, and then keep holding “+” and “-” buttons till the puffs or seconds are reset to “0”.
Preheat function: in power-off state, keep holding “+” and fire buttons till the M1 mode appears;press the fire button 3 times to “Power”, and press “+” or “-” button to adjust the wattage of preheat;press the fire button again to “Time”, and press “+” or “-” button to adjust the second of preheat or to turn off the preheat function.
Function of charging cell phone: screw an RC adapter (not included) on the device and connect it with a cell phone by a USB cable. When the device is powered on, press the fire button once to start to charge the cell phone.
Function of charging other e-cigarette mod: screw an RC adapter (not included) on the device and connect it with another e-cigarette mod by a USB cable. In power-off state, keep holding “+”button and fire button till the M1 mode appears; press the fire button 5 times to “USB” interface, and press “+” or “-” button to turn on or off this function. When the “USB” is turned on, 5 clicks of the fire button to power on the device, and in USB Charge mode, press fire button once to start to charge other e-cigarette mod.

Switch vaping modes: when the device is powered on, press the fire button 3 times in quick succession, the device will display current vaping mode. Press the “+” or “-” button to switch among VW, USB Charge (this mode appears only when “USB” is on), TC-Ni, TC-Ti, TC-SS, TCR-M1,、TCR-M2, TCR-M3 modes and then press the fire button once or stay in the interface for about 10 seconds to confirm the vaping mode you chose.
1) VW mode:
When set in VW mode, the device can support a coil whose resistance is within the range of 0.1ohm-3.5ohm.
Adjust wattage: in this mode, the output wattage can be adjusted from 1W to 300W by pressing “+”or “-” button, “+” button to increase and “-” button to decrease. Long press “+” or “-” button can rapidly increase or decrease the wattage level.
2) TC-Ni/TC-Ti/TC-SS/TCR(M1, M2, M3) Mode:
When set in TC-Ni/TC-Ti/TC-SS mode, the device can separately support Nickel 200, Titanium, and Stainless Steel 316 coils. In TCR(Temperature Coefficient of Resistance) mode, the device can support different temperature control coils within different TCR value ranges and you can set the TCR at different values within proper range. (Resistance range of coil: 0.05ohm-1.5ohm)
3)The Setting of TCR Mode (M1,M2,M3):
when the device is powered off, keep pressing the fire button and the “+” button simultaneously, then you will enter into the TCR (M1,M2,M3) set menu:
1. Press the fire button to choose among M1, M2 and M3 modes;
2. Press the “+” or “-” button to increase or decrease the TCR value according to the material of the coil you use;
3. Keep pressing the fire button or stay in the interface for about 10 seconds to confirm your setting.

Adjust wattage: in TC-Ni/TC-Ti/TC-SS/TCR(M1,M2,M3) mode, the output wattage can be adjusted from 1W to 300W. Press the fire button 4 times in quick succession to enter the wattage setting menu and press “+” or “-” button to increase or decrease the wattage level. Keep pressing “+” or “-”
button without looseness to rapidly increase or decrease the wattage level.
Adjust temperature: in TC-Ni/TC-Ti/TC-SS/TCR(M1,M2,M3) mode, temperature can be adjusted from 100-315℃ or 220-600℉ by pressing “+” or “-” button, “+” button to increase and “-” button to decrease. Each press of the “+” or “-” button will increase or decrease the temperature setting by 5℃
or 10℉. Keep pressing “+” or “-” button without looseness can rapidly increase or decrease temperature setting.

How to put custom logo in the device?
Download the file on our official website, plug the device in with USB cable to a computer, and double click the EleafUpdate.exe. Then click “LOGO” and open the image you choose to put it in the device. Finally press the fire button twice in quick succession when the device is powered on to enter logo on/off interface and press “+” button or “-” button once to turn on/off logo.
Note:
1. Please make sure the image you choose is a monochrome image of 96*32 pixels in the format of bmp.
2. If you fail to put the custom logo in and the device shuts down, press the “-” button once to restart the device.

Functions of Micro USB Port
Charging:
The battery power indicator on the screen of the device will keep flashing when the remaining power of the 18650 batteries is less than 10%. The 18650 batteries can be charged in the device through USB port via wall adapter or a computer or charged with an external battery charger. If the 18650 batteries are charged in the device, the battery bars on the screen will keep flashing during charging and the screen will go out when fully charged.
Firmware Upgrading:
The firmware can be upgraded by connecting the device with a computer through the USB port via a micro USB cable

Properties
Atomizer Protection: each time when vaping time exceeds 10 seconds, the output shuts off automatically with “Over 10s” display on the screen.
Atomizer Low Alert: when the resistance of coil is lower than 0.1ohm in VW mode or lower than 0.05ohm in TC modes, the screen will display “Atomizer Low”.
Atomizer Short-circuit & No Atomizer Protection: when atomizer short-circuit occurs, the screen will display “Atomizer Short”. The screen will display “No Atomizer” when there is no atomizer connected.
Low-voltage Protection: when the voltage of the batteries is below 3.3V, the screen will first display “Battery Low” and then “Lock”. Charge the batteries to unlock the device.
Temperature Protection: in TC modes, when the actual temperature of coil reaches the set temperature, the screen will display "Temp Protection". You can continue to use the device normally.
Temperature Alert: if the temperature of device is over alert temperature, the output will shut off automatically and the screen will display “Device Too Hot”. You can continue to vape after it cools down.
Weak Battery Alert: in all vaping modes, when the device is working with an atomizer and the voltage of the batteries drops below 2.9V, the screen will display “Weak Battery”. Meanwhile, the output power will be reduced accordingly.
Imbalanced Alert: if the voltage difference between two batteries is equal to or more than 0.3V, the device will display “Imbalanced Batteries” when plugged in. Please fully charge the batteries externally or replace the batterries with freshly charged batterries.
Check Battery Alert: if the batterries are installed incorrectly, the screen will display “Check Battery”.
Charge Error Alert: when no current is detected in charging state, the screen will display “Charge Error”.
Check USB Alert: if the voltage of the USB charger is equal to or more than 5.8V, the device will display “check USB” when plugged in or vaping.

Warranty
We are not responsible for any damages caused by human error. Legal warranty is applied.

Warnings
1. Please keep out of reach of children.
2. This product is not recommended for use by young people, non-smokers, pregnant or breast-feed-ing women, or persons who are allergic/sensitive to nicotine.

Contra-indication
1. Do not attempt to repair the product by yourself as damage or personal injury may occur.
2. Do not leave the product in high temperature or damp conditions, otherwise it may be damaged.
3. Do not use this product for other purposes except only for vaping and don’t swallow the e-liquid.

Possible Adverse Effects
1. This product may be hazardous to health and contains nicotine which is addictive.
2. For people with adverse reaction after using this product, it is recommended to use the e-liquid
with lower nicotine content or no nicotine.
